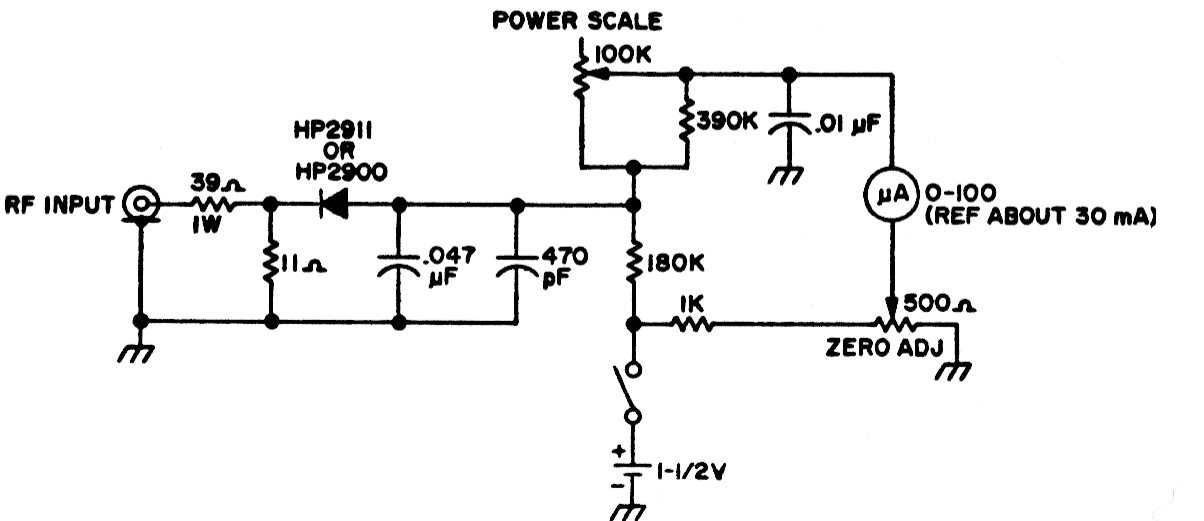

We find this circuit measuring from 1 to 1000 mW of power from small transmitters and oscillators in 1980s American documentation. The diode can be 1N34 and the instrument can be replaced by the appropriate current range of a common multimeter.
