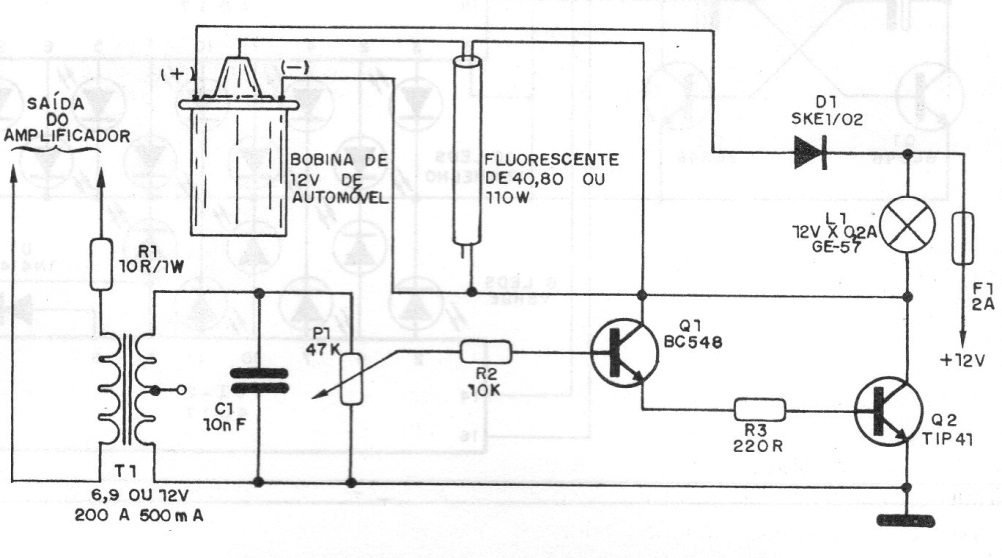

This 1987 circuit uses a common ignition coil to generate high voltage to power a fluorescent lamp that blinks with the music. A small power transformer is used to isolate the output of the amplifier and to obtain the excitation voltage of the circuit. The lamp can be 5 to 40 watts.
