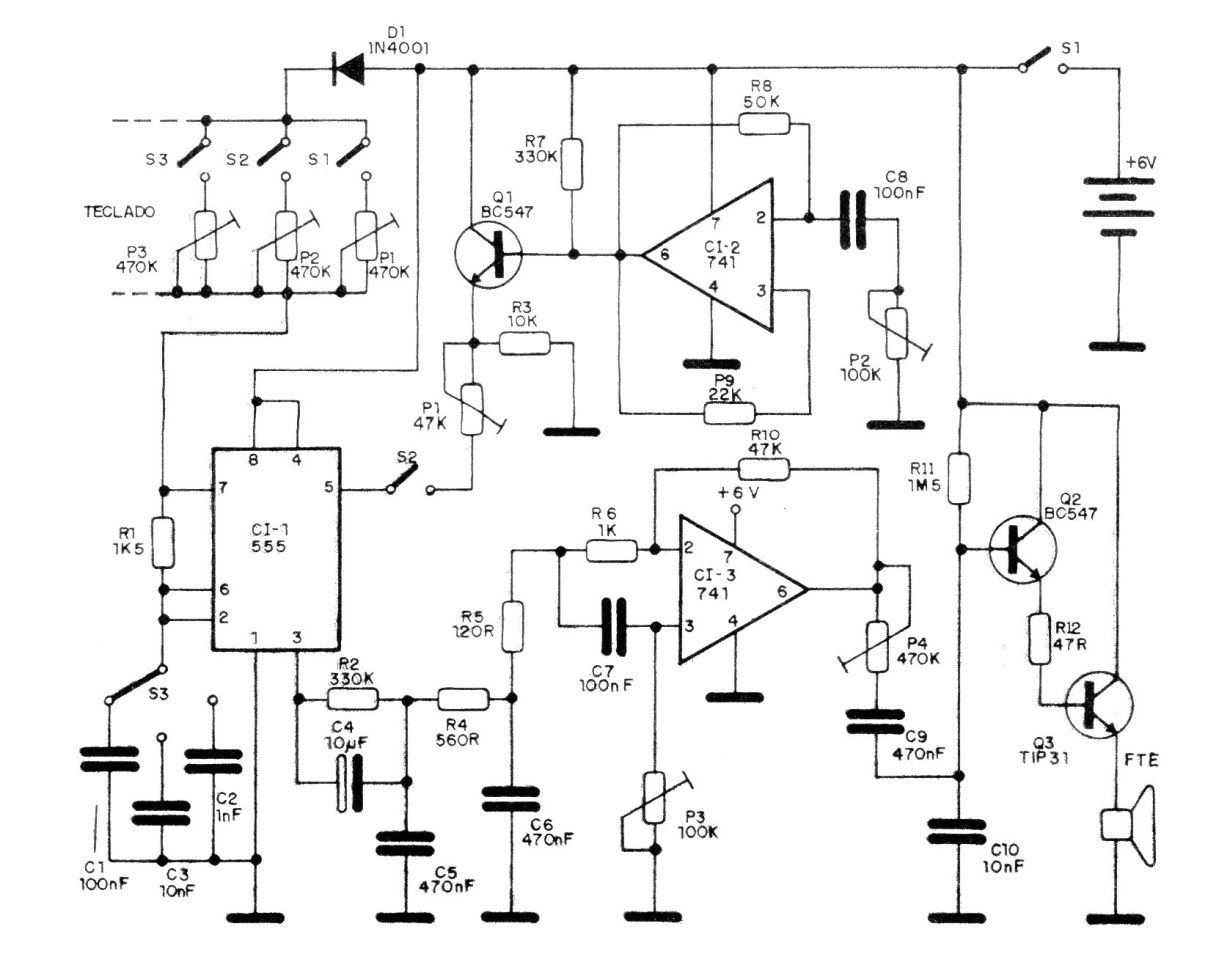

We found this electronic organ circuit in a 1987 documentation. The circuit should be powered by large batteries or power sources due its consumption. A good power output stage ensures a high sound level. The keyboard must have a trim trimpot for each note and the octaves are selected by the capacitors next to the 555.


| Clique na imagem para ampliar |





N° of component
