Short Circuit Protection for the Bench (CB3821E)

Details
Written by: Newton C. Braga

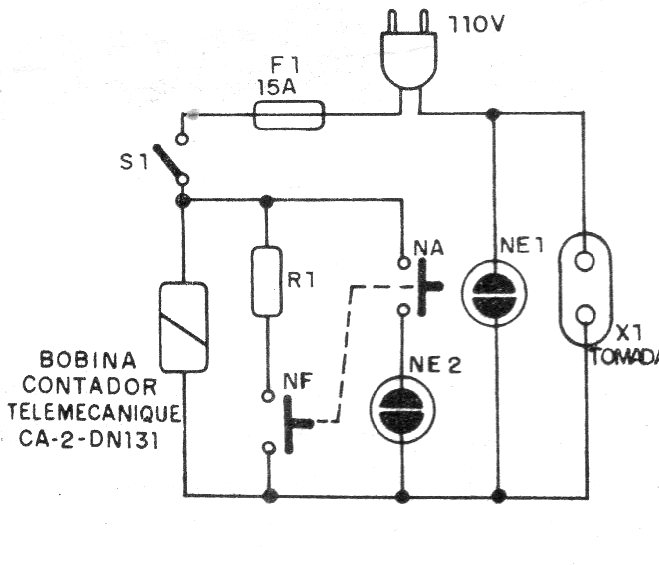

     This circuit uses a contactor having been found in a 1987 publication. More modern equivalent devices may be used. The circuit has neon indicator lamps.
