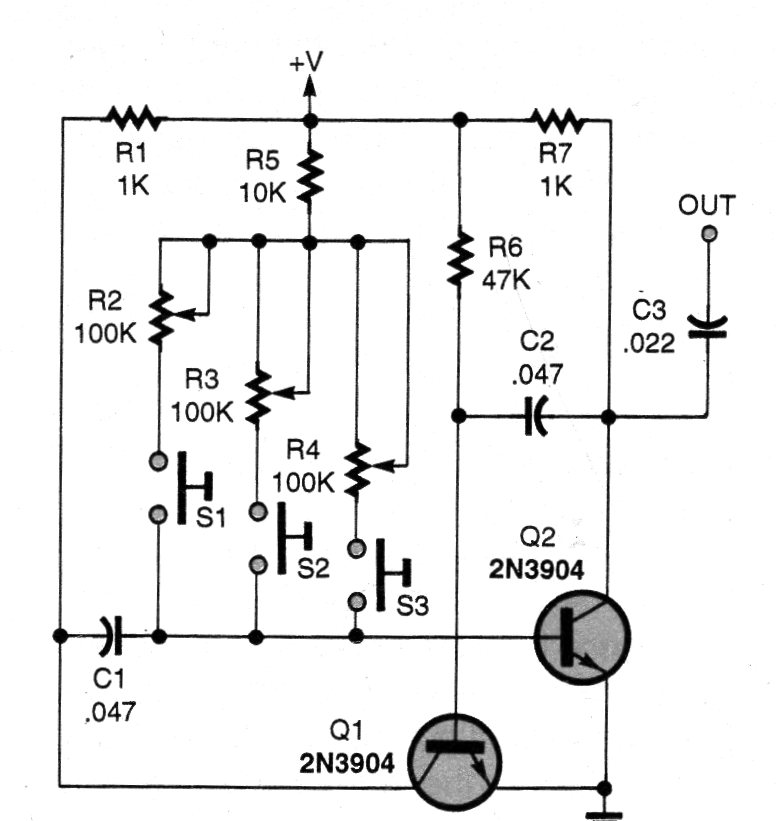

This traditional complementary circuit produces three different ones, adjusted in the potentiometers, according to the actuated switch. The transistors may be the BC548s and the signal must be applied to an amplification step. Equivalent transistor can be used.
| Clique na imagem para ampliar |
