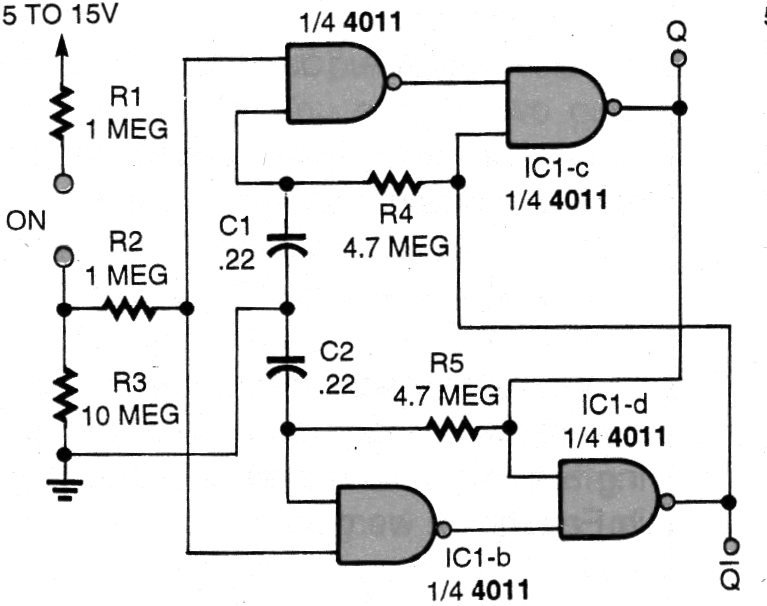

The four gates of a 40111 IC are used in thes two-out circuit. The output chages their state in a complementary mode. Do not power the circuit from transformerless supplies. The circuit can be used as a shield for microcontrollers.
