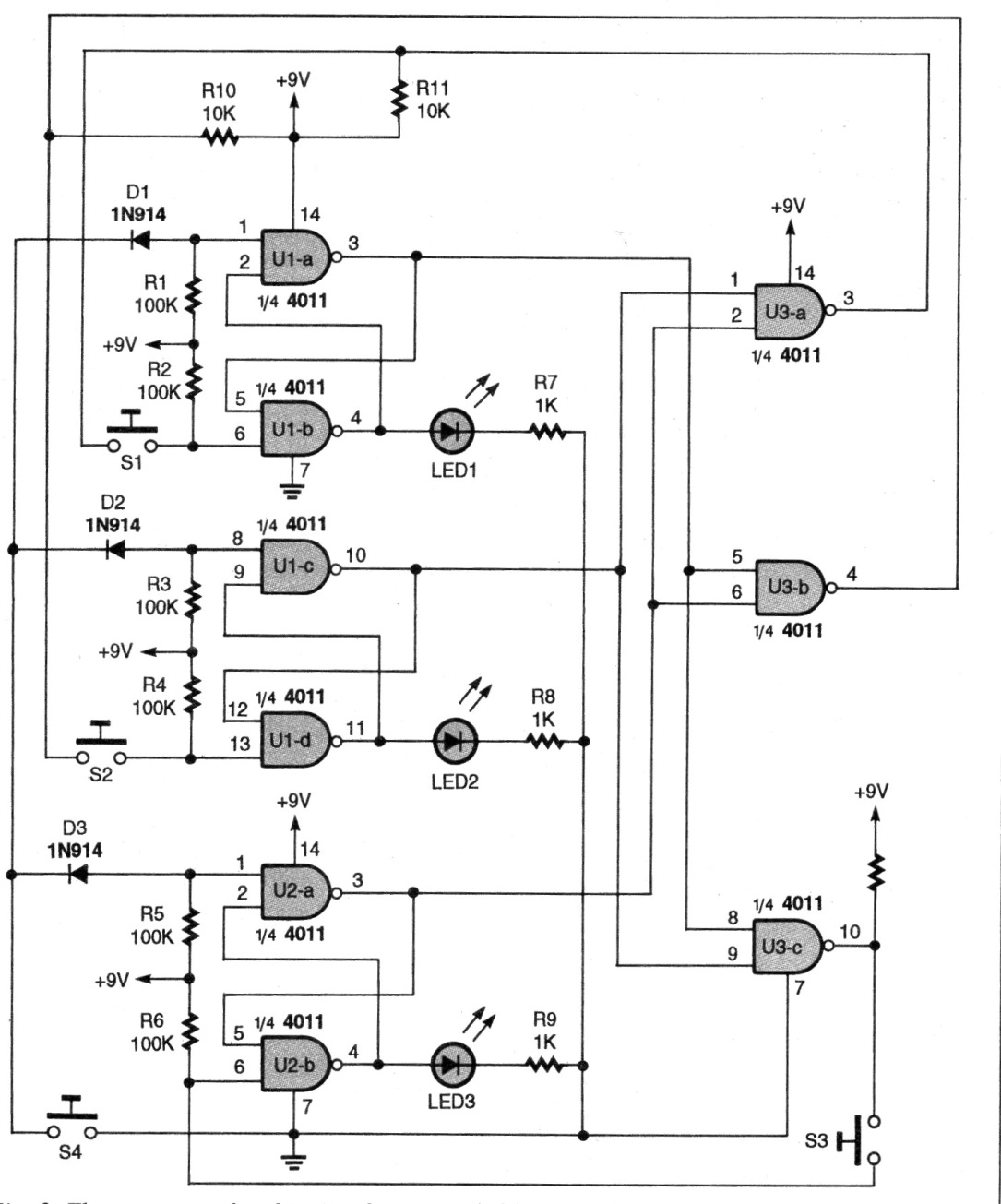

Who is the fast for 4 competitors (CB3859E)

Details: Written by: Newton C. Braga

We found this circuit in a Poptronics from 1998. The circuit can be extended to more competitors with another 4011. The power can be made with voltages from 6 to 12 V.
