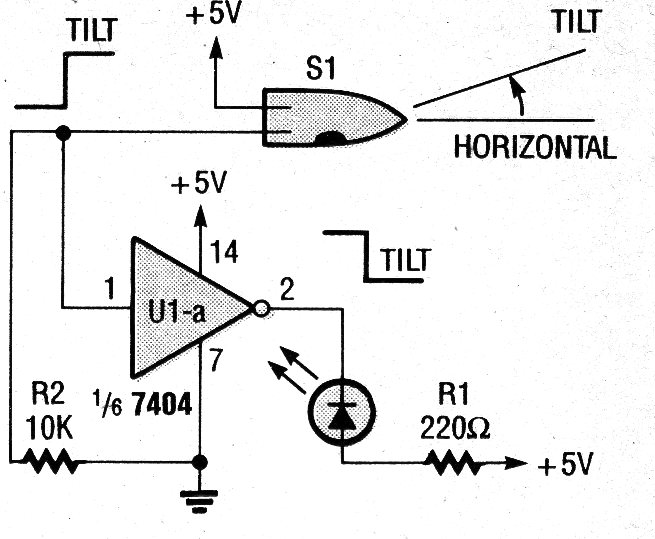

The slope of an object causes the sensor, a mercury switch to be triggered. The circuit activates an LED, but its output signal can be used to trip alarms or automatisms. We can use this circuit to indicate Tilt in games. The circuit was found in a 1993 Poptronics.
