455 kHz Oscillator (CB3873E)

Details
Written by: Newton C. Braga

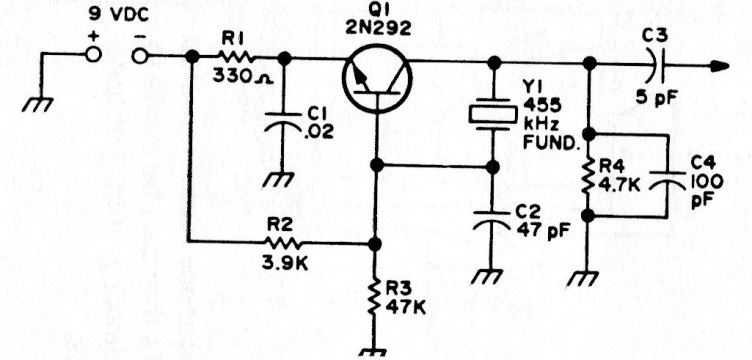

    This crystal oscillator is indicated for the calibration of IF steps of common radio receivers. The transistor admits equivalent as 2N2222 or BF494. The circuit is from an old American publication.
