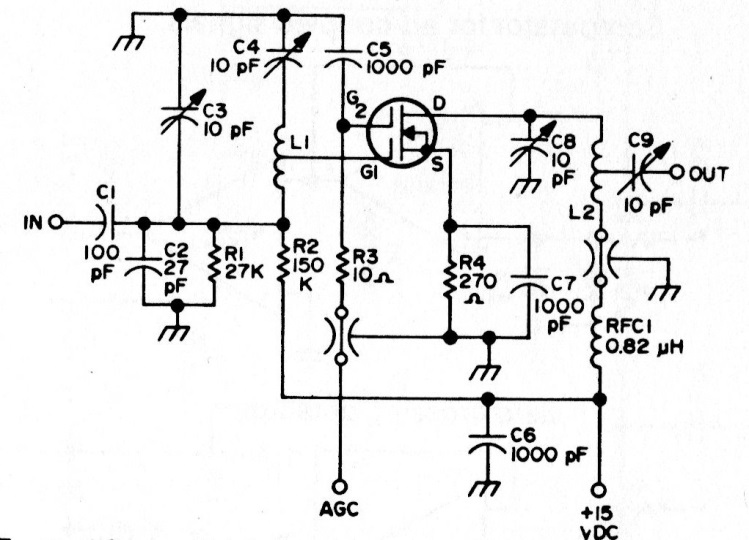

This circuit was originally designed to measure the gain of two-door RF MOSFETs as indicated by Fairchild. The circuit is from the 80's having been taken from the company's Application Note. However it can be used with other MOSFETs. Details of the coils were not given.
| Clique na imagem para ampliar |
