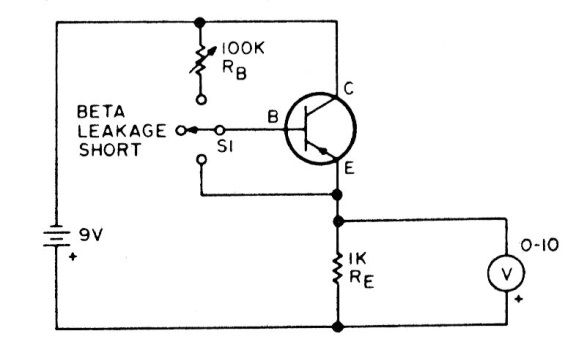

The purpose of this circuit is to enable testing of transistors using a common multimeter. With the potentiometer in the circuit the gain is measured and with the base open it can check for leaks or short. The circuit is for NPN transistors.
