500 MHz Probe (CB3918E)

Details
Written by: Newton C. Braga

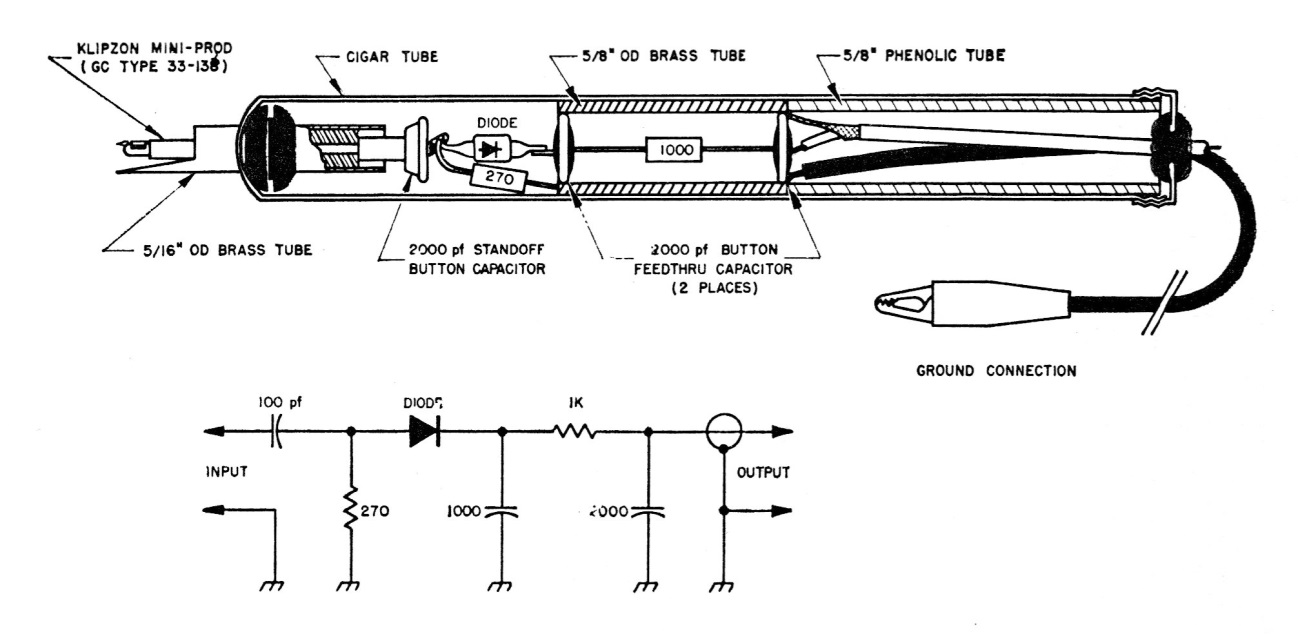

    This circuit is intended for use with common oscilloscopes having been found in documentation on instrumentation from the 1970s. The capacitors are of the ceramic type with low parasitic inductance.
