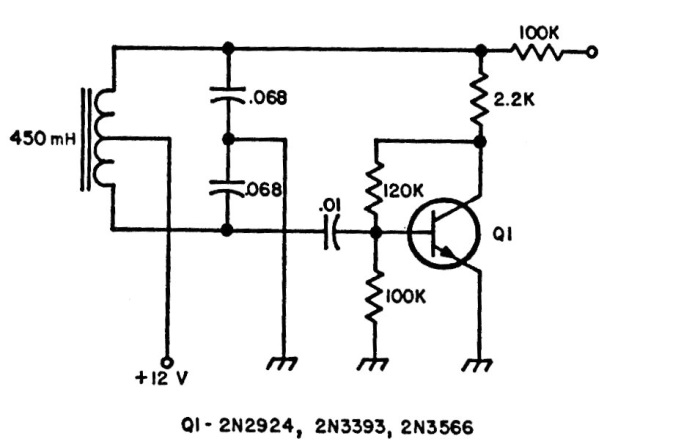

In this circuit of a 1970s publication, data from the coil to oscillate at the desired frequency are not provided. Of course, the reader must calculate it. The transistor can be general use and the power supplied with voltages from 6 to 12 V.
| Clique na imagem para ampliar |
