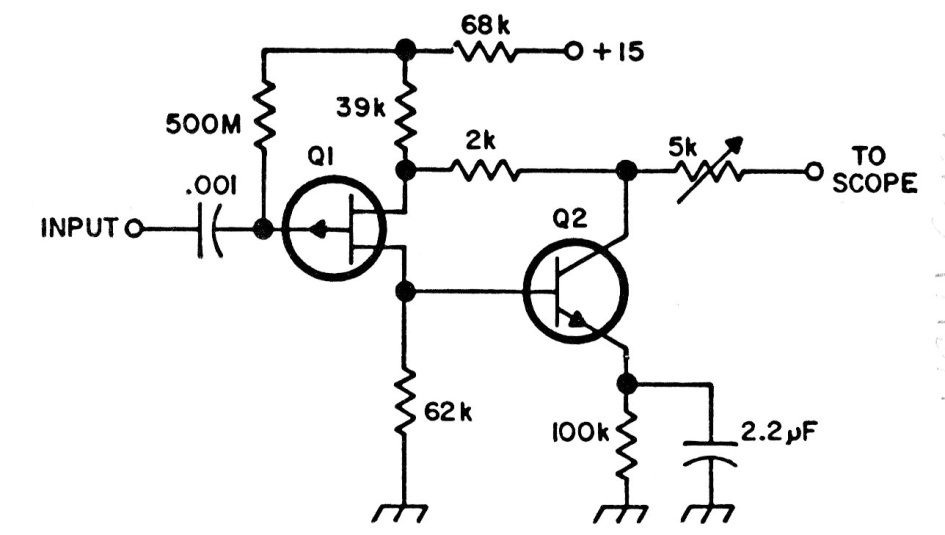

This circuit can be used in instrumentation to obtain a very high input impedance for measurement of low intensity alternating signals. The FET can be the BF245 and the bipolar transistor either of general use. The circuit is from a 1980s technical documentation.
