Oscilloscope Calibrator (CB3952E)

Details
Written by: Newton C. Braga

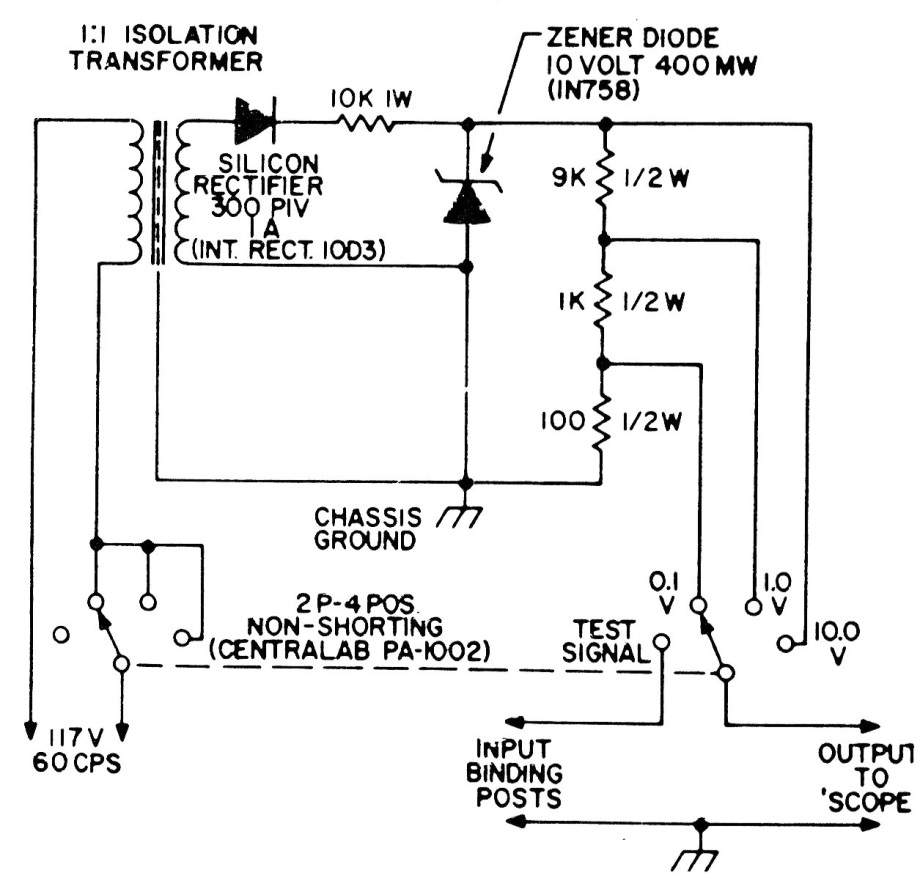

     This circuit is suitable for the calibration of old analog oscilloscopes. It was found in documentation from the 1970s and could be useful if someone is recovering an oscilloscope of the time.
