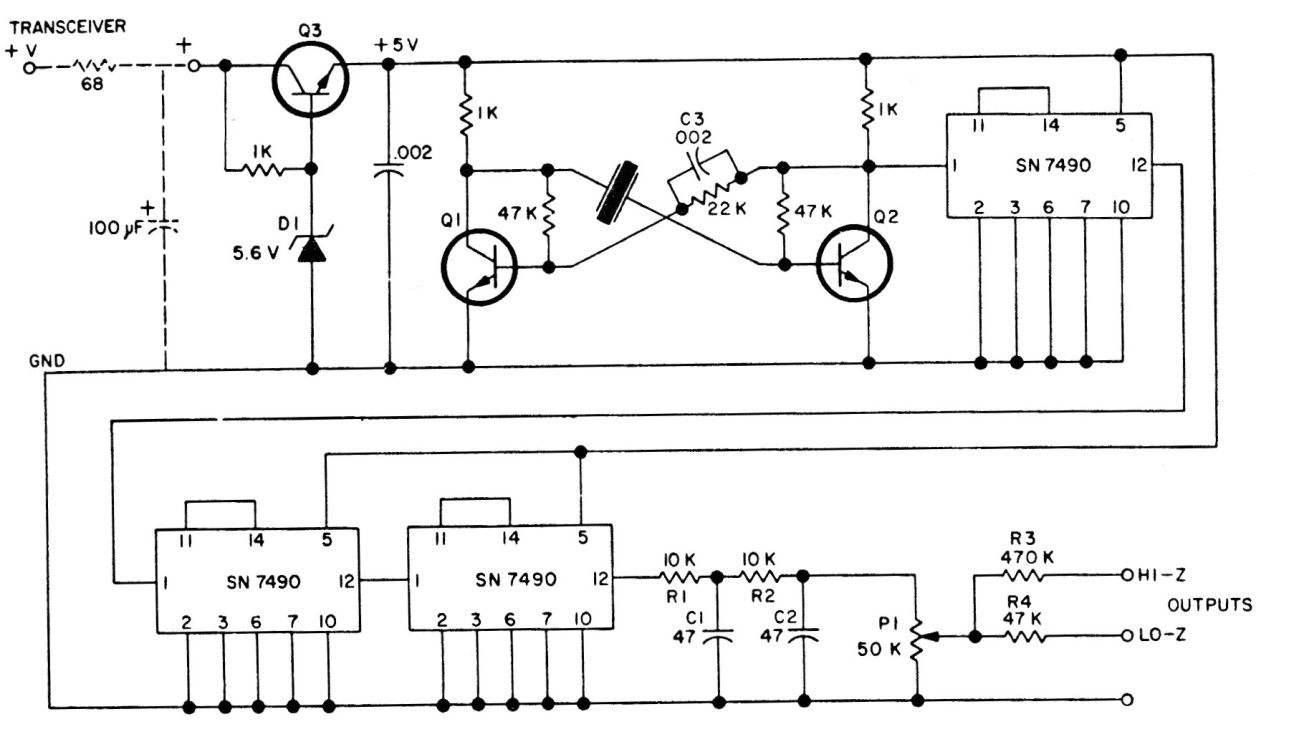

This circuit was found in an old American documentation aimed at amateurs. The circuit generates very low frequency tone signals controlled by a crystal and a TTL splitter system. The circuit must be powered with 5 V being the source already included.
