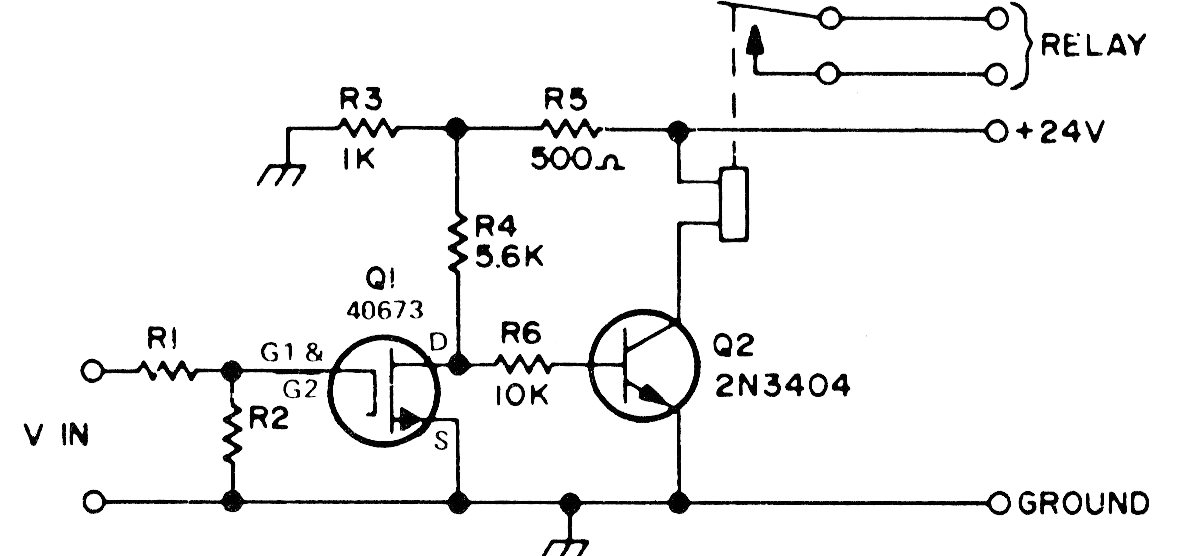

This relay circuit with a dual channel MOSFET (not very common today) was found in an old American publication. The circuit uses a bipolar as driver to trigger a sensitive relay according to the voltage used in the power supply.
