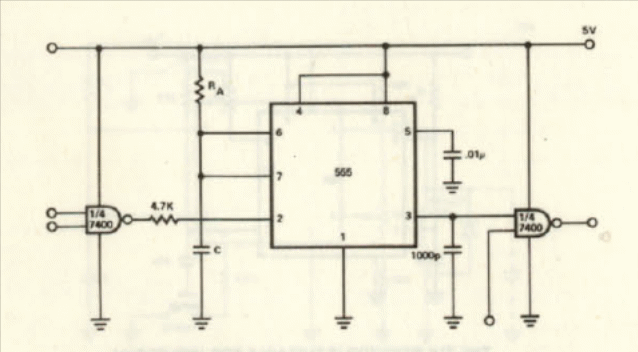

This monostable with the 555 is triggered by TTL signals and provides TTL output signals. The circuit is from Mullard (Philips) of an old publication and the timing depends on Ra and C.
