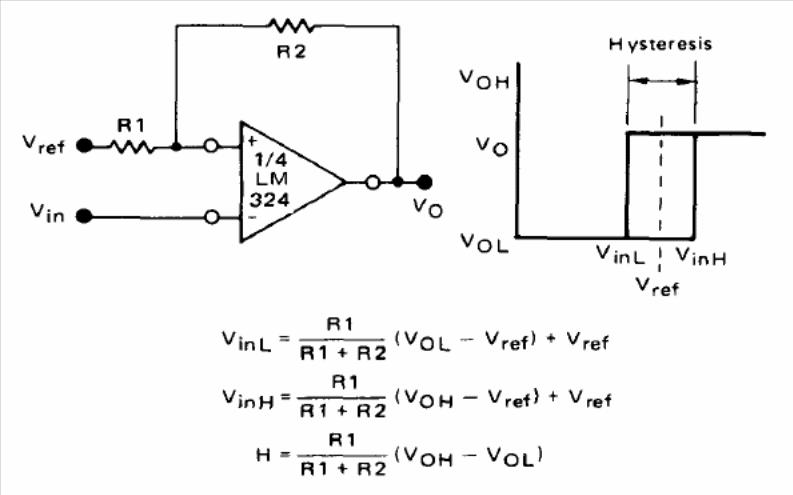

This circuit is from the 1990 Motorola Linear Databook. The circuit can be applied to other operational amplifiers. The formulas next to the diagram allow to calculate the characteristics of the circuit for a desired application.
