Function Generator (CB4011E)

Details
Written by: Newton C. Braga

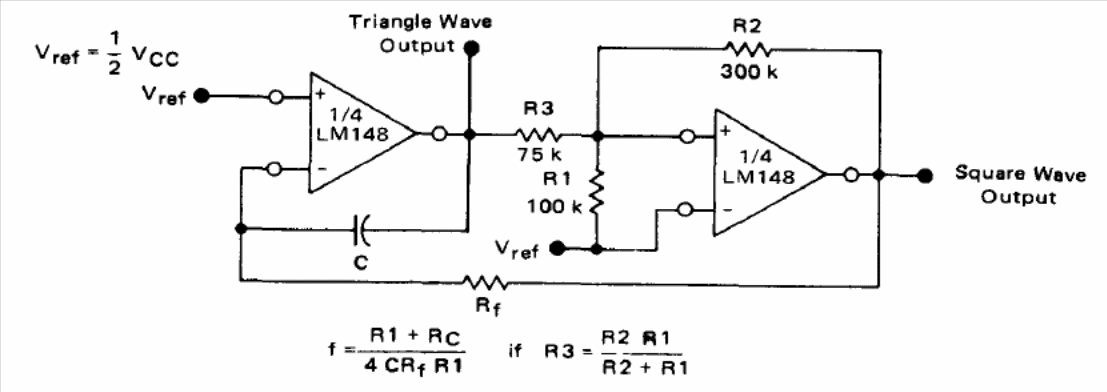

   This circuit is from the Motorola Linear Databook of 1990 and can be implemented with other operational amplifiers. The power supply must be symmetrical.
