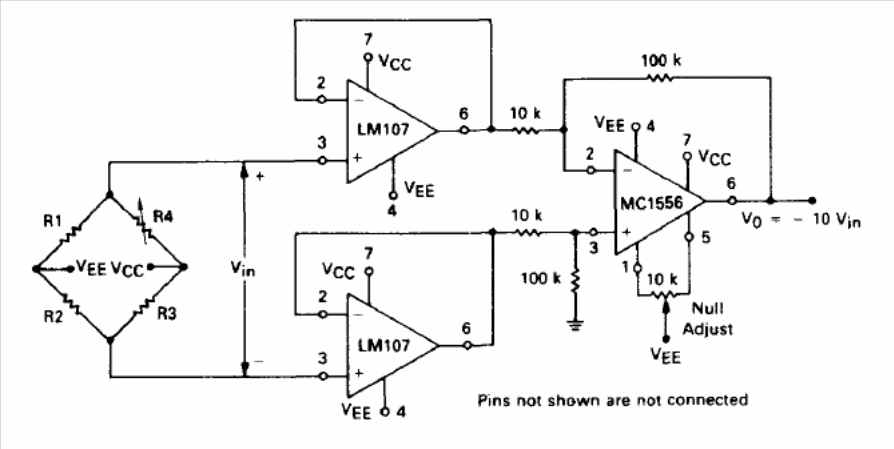

High Impedance Bridge Amplifier (CB4013E)

This circuit is from Motorola's 1990 Linear Databook. We can implement it with other operational amplifier. The power supply must be symmetrical.

| Clique na imagem para ampliar |

Two conventional 78xx power supplies (CB25958E)
This circuit appeared in the June 1990 issue of Radio Electronics magazine. Integrated circuits must...
SCR Photosensor (CB16109E)
Lockout shooting, due to the incidence of light, can be achieved with the circuit in the figure. In...
Galena with FET Preamplifier (CB10212E)
This circuit can function either as a crystal or galena receiver with a pre-amplifier using a FET...
