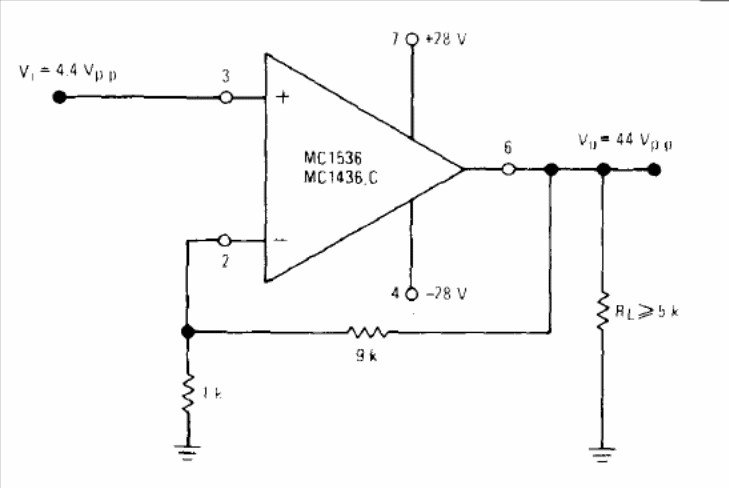

Gain 10 Non-Inverting Amplifier MC1436 (CB4014E)

Details
Written by: Newton C. Braga



   This amplifier is from Motorola's 1990 Linear Databook. The circuit can be used with operating amplifiers with the same characteristics and the power supply must be symmetrical.




| Clique na imagem para ampliar |
