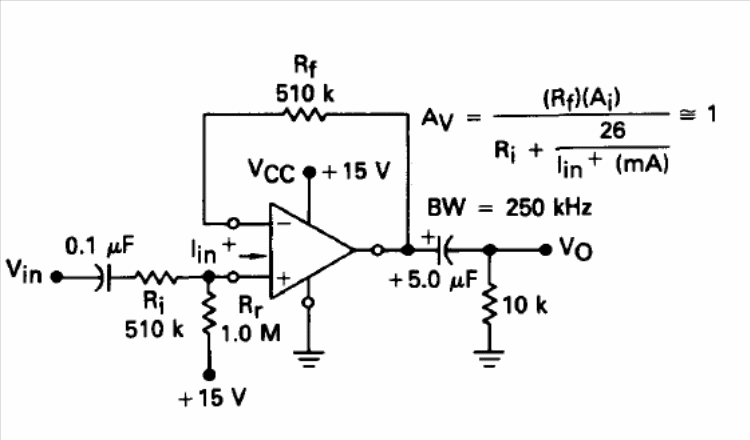

This configuration can be applied to other transconductance operationals. The circuit has a gain given by the components according to the formula and the power supply must be symmetrical. The circuit is from the 1990 Motorola Linear Databook.
