Differential Amplifier For Positive Edge LM3900 (CB4038E)

Details
Written by: Newton C. Braga

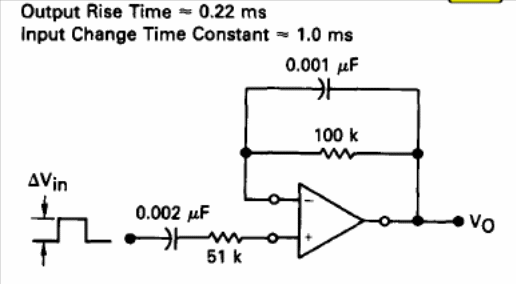

    This circuit, with an operational amplifier, was found in the Motorola Dataar Linear of 1990. The source must be symmetrical and the source can be of almost any type.
