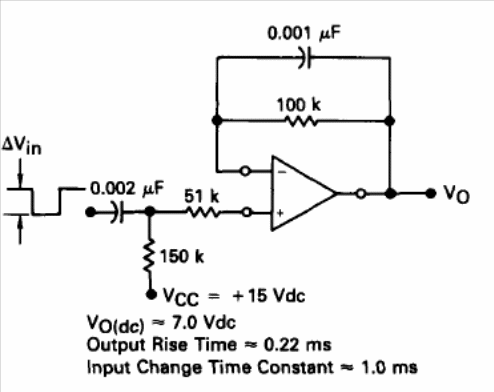

Negative Edge Differential Differential Amplifier LM3900 (CB4039E)

This circuit was found in the 1990 Motorola Linear Databook and can use almost any operational amplifier. The power supply must be symmetrical.
