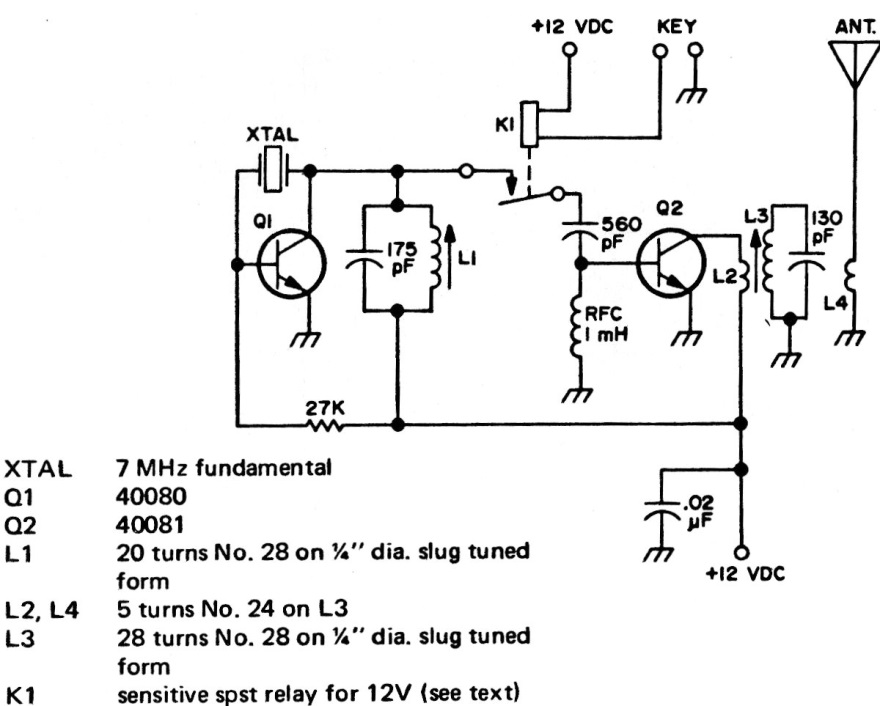

This transmitter for the 7 MHz range, as we can assume by the number of turns of the coil, since the original American text does not indicate, can be elaborated based on equivalent transistors and uses crystal. The circuit is suitable for telegraphy.
| Clique na imagem para ampliar |
