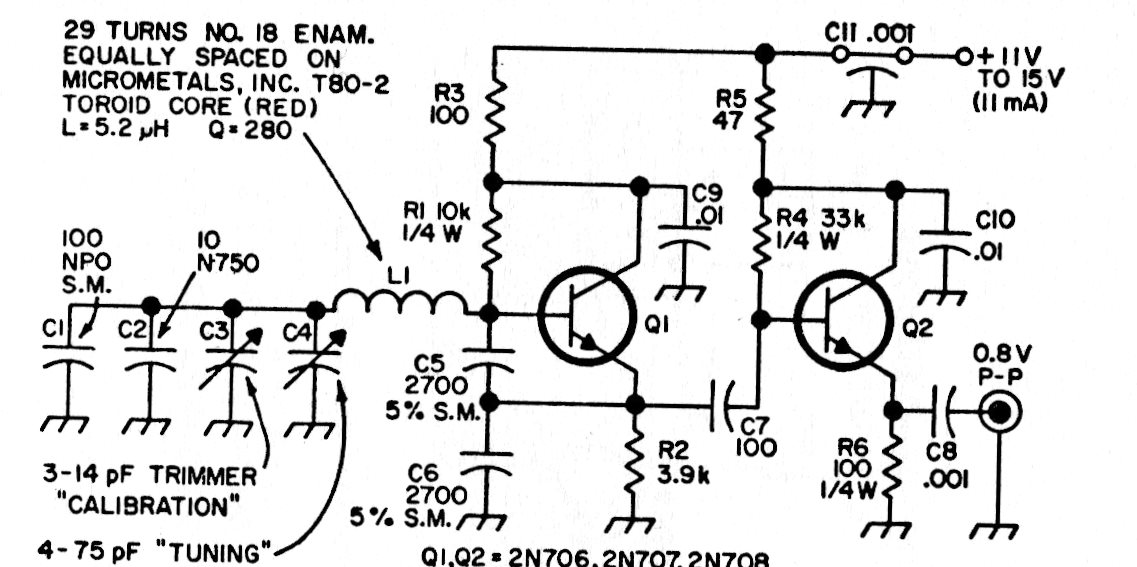

This circuit was found in an old documentation for radio amateurs, being indicated for transmitters in SSB. The circuit has the coil data in the diagram itself and modern equivalent transistors can be used.
| Clique na imagem para ampliar |
This circuit was found in an old documentation for radio amateurs, being indicated for transmitters in SSB. The circuit has the coil data in the diagram itself and modern equivalent transistors can be used.
