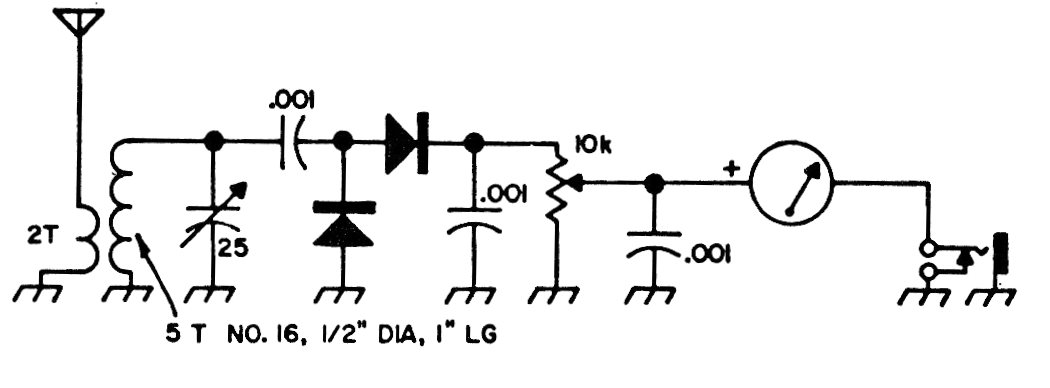

This circuit is more sensitive than the previous one (CB4118E) for using a full wave detector. The resonant circuit must be tuned to the monitored frequency. The instrument is a microammeter of 50 uA. The circuit is indicated for the range of 2 and 6 meters of radio amateurs.
