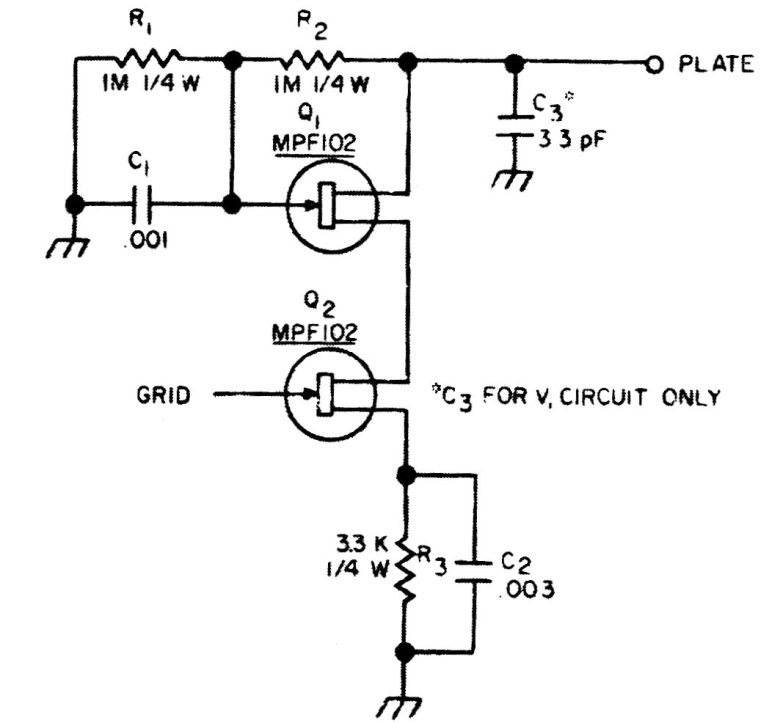

This circuit was found in an old 1980s valve documentation. The circuit can directly replace a pendulum valve on a low signal amplifier circuit. The MPF102 has by its most modern equivalent the BF245. The supply voltages are in accordance with the FETs used.
