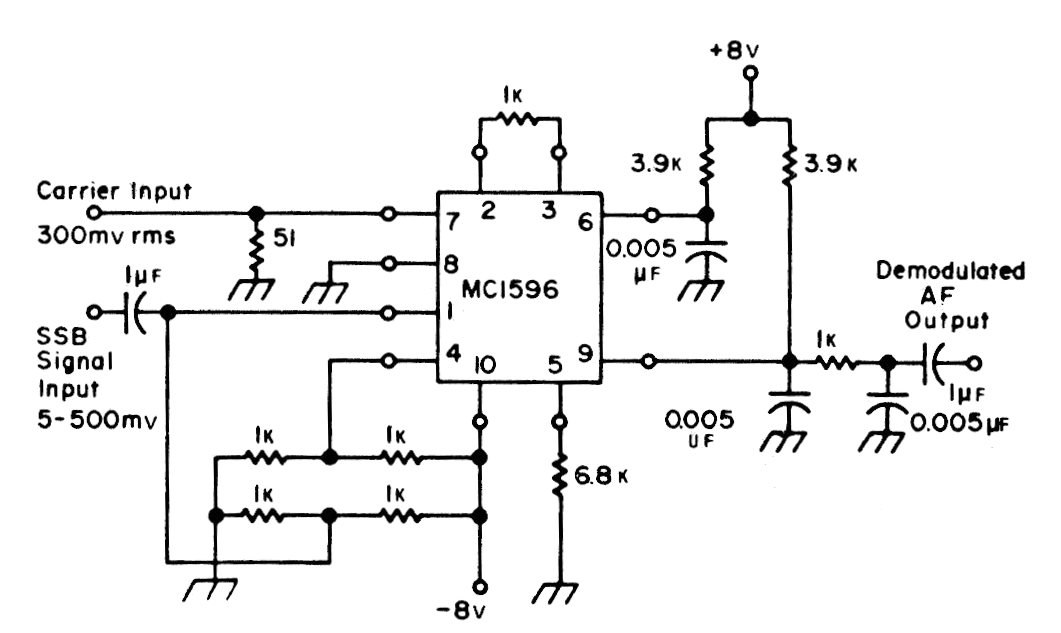

Found in a 1980s publication for amateur radio, this circuit employs an MC1596G which is a Motorolaa integrated integrated. The difficulty of obtaining this integrated prevents the current assembly of the circuit. Worth as a reference.




| Clique na imagem para ampliar |
