Two Diode Balanced Modulator (CB4233E)

Details
Written by: Newton C. Braga

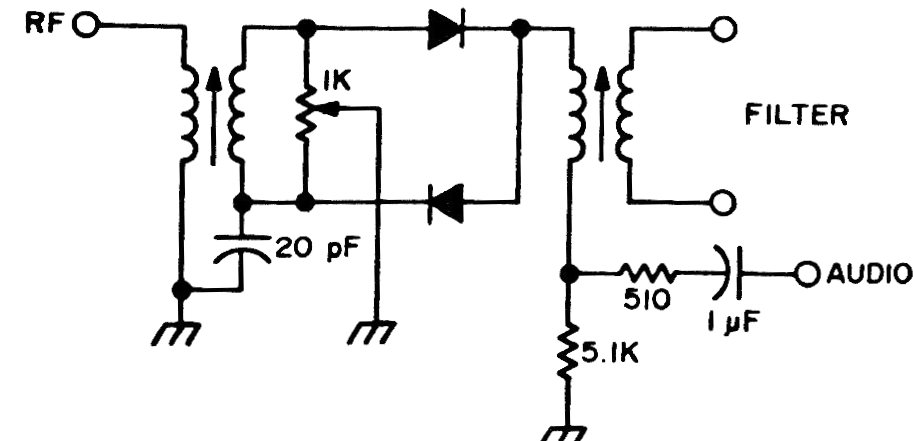

     This is yet another balanced modulator circuit for SSB transmission. This two-diode circuit was found in a 1980s documentation. The diodes are commonly used.
