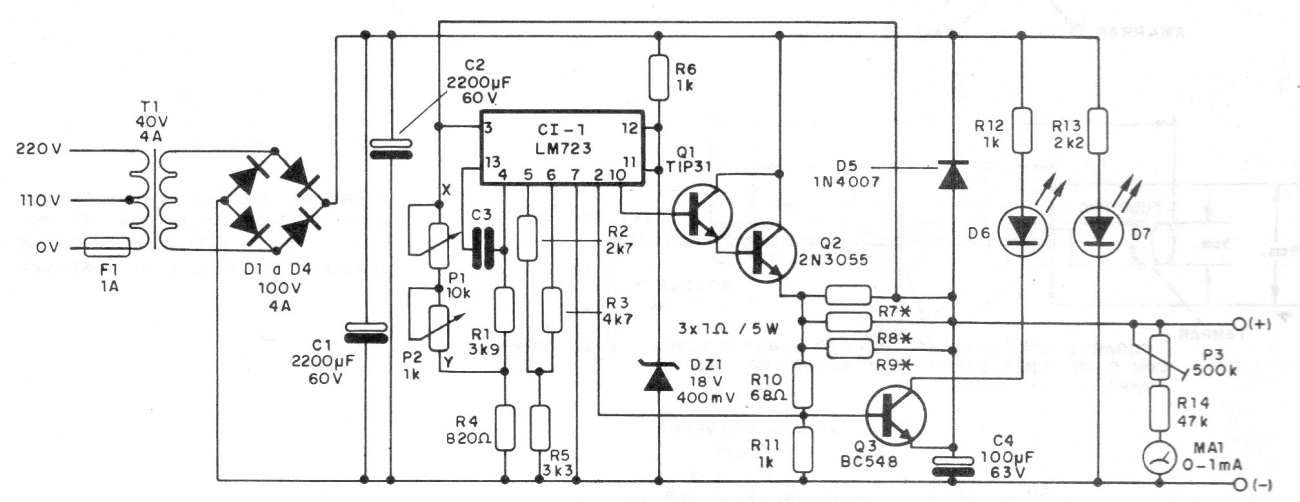

We found this source with the CI 723, common at the time, in a 1989 paper. Power transistors must be equipped with heat sinks, especially the 2N3055. The circuit has a main adjustment and a fine voltage adjustment. The output voltmeter can be replaced with a standard multimeter.
| Clique na imagem para ampliar |
