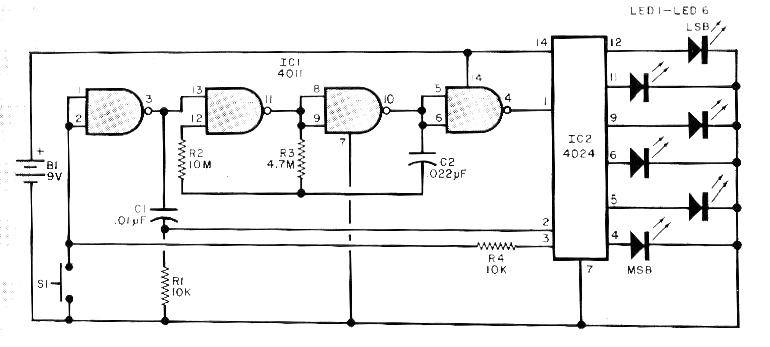

This circuit came out in an American magazine that no longer exists. It's the Electronic Experimenter's Handbook, 1981 edition. The circuit makes LEDs indicate the binary input pulse count produced by S1. The circuit must be powered by 5 to 9 V voltages.
