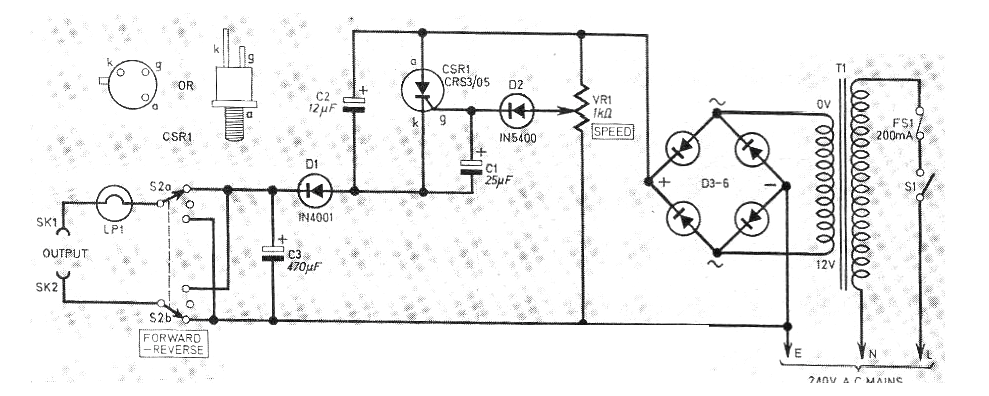

This circuit was obtained from an English magazine from 1977. The magazine no longer exists, but the circuit can be easily assembled as the bridge diodes can be 1N4004 and SCR or TIC106. The transformer has 12 V x 1 A of secondary and primary depending on the power grid.
