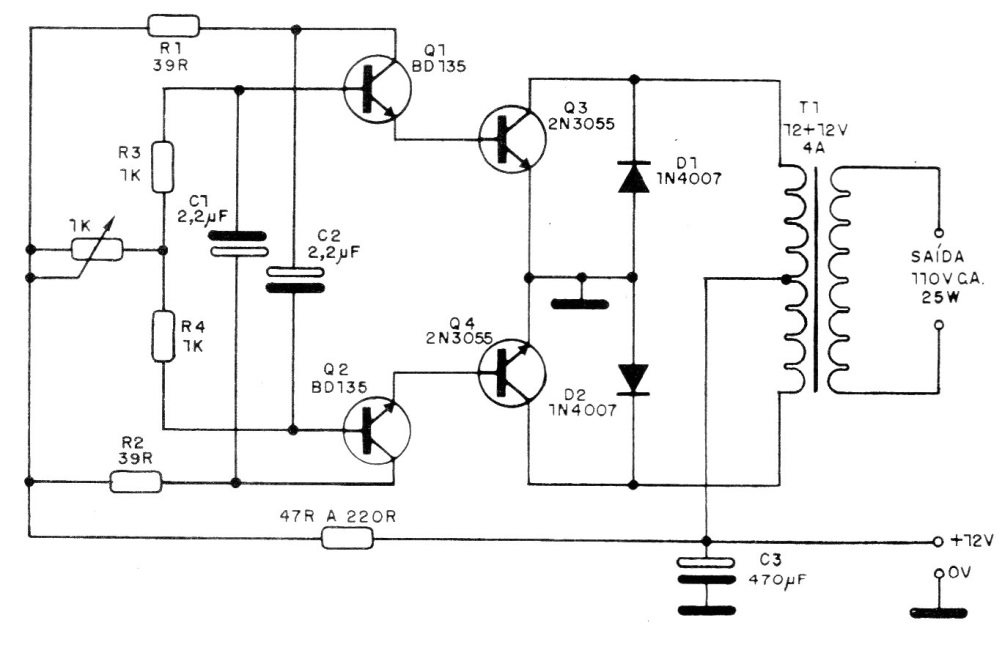

This circuit has a fairly common configuration consisting of a counter phase oscillator. The power of the transformer determines the output power of the circuit. Power transistors must be equipped with good heat sinks. The yield is adjusted on the potentiometer.
