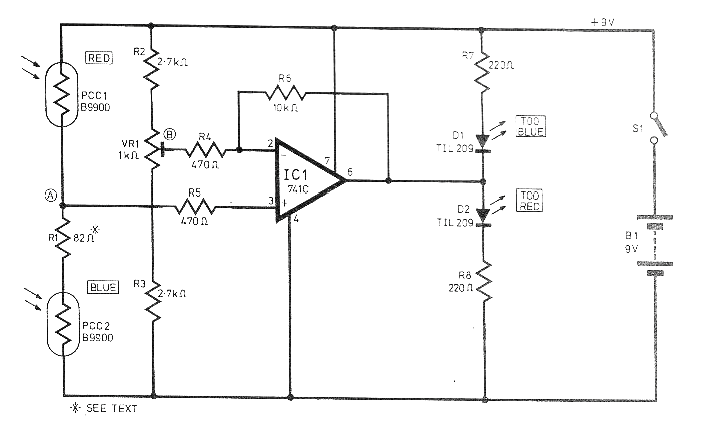

I found this circuit in a 1974 magazine, but it can still be easily assembled because the components are common. LEDs are common as are LDRs. The circuit is adjusted so that the LEDs are off and it will sound when the light is strongest on either LDR. R must be obtained experimentally in the range of 22 ohms to 220 ohms.
