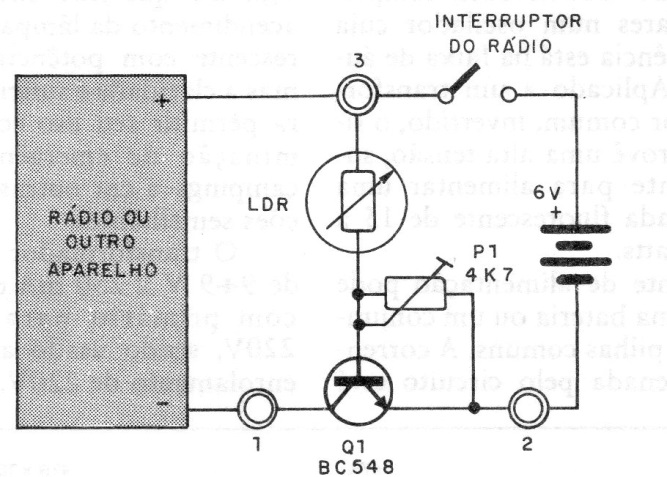

This circuit is interleaved with the source of a portable AM or FM radio previously tuned to a station. At dawn, the LDR trips the transistor feeding the circuit. The circuit trigger point is set in the trimpot. With the transistor used the maximum controlled current is of the order of 100 mA.
