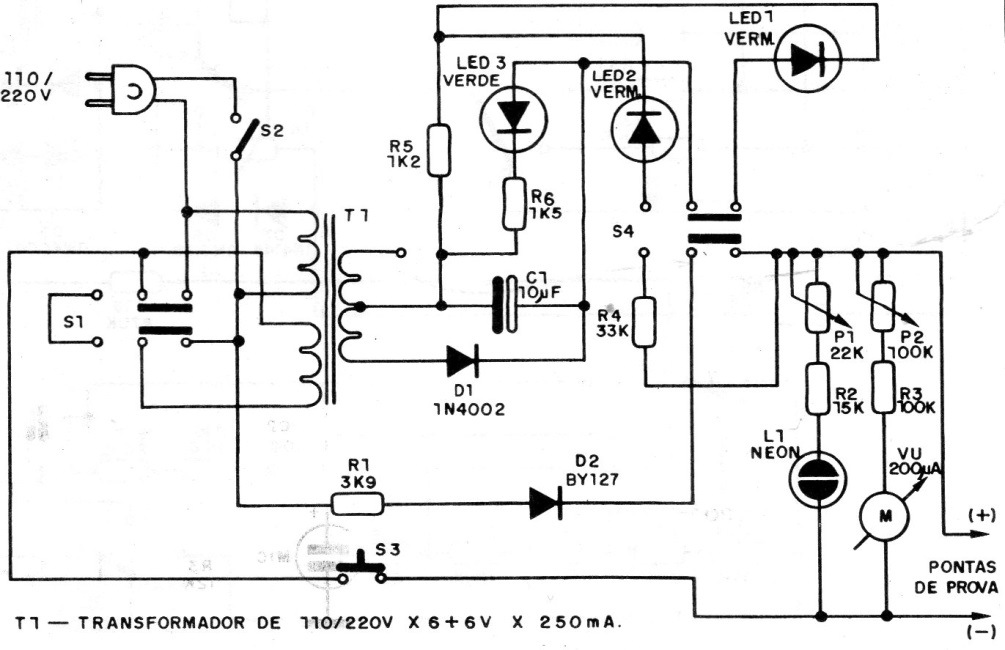

This circuit is suitable for testing motor starting capacitors. Capacitors from 2 to 8 uF are used. The circuit uses a high voltage source for the test and the indication is made by both a neon lamp and instrument. The circuit is from a 1988 documentation.
| Clique na imagem para ampliar |
