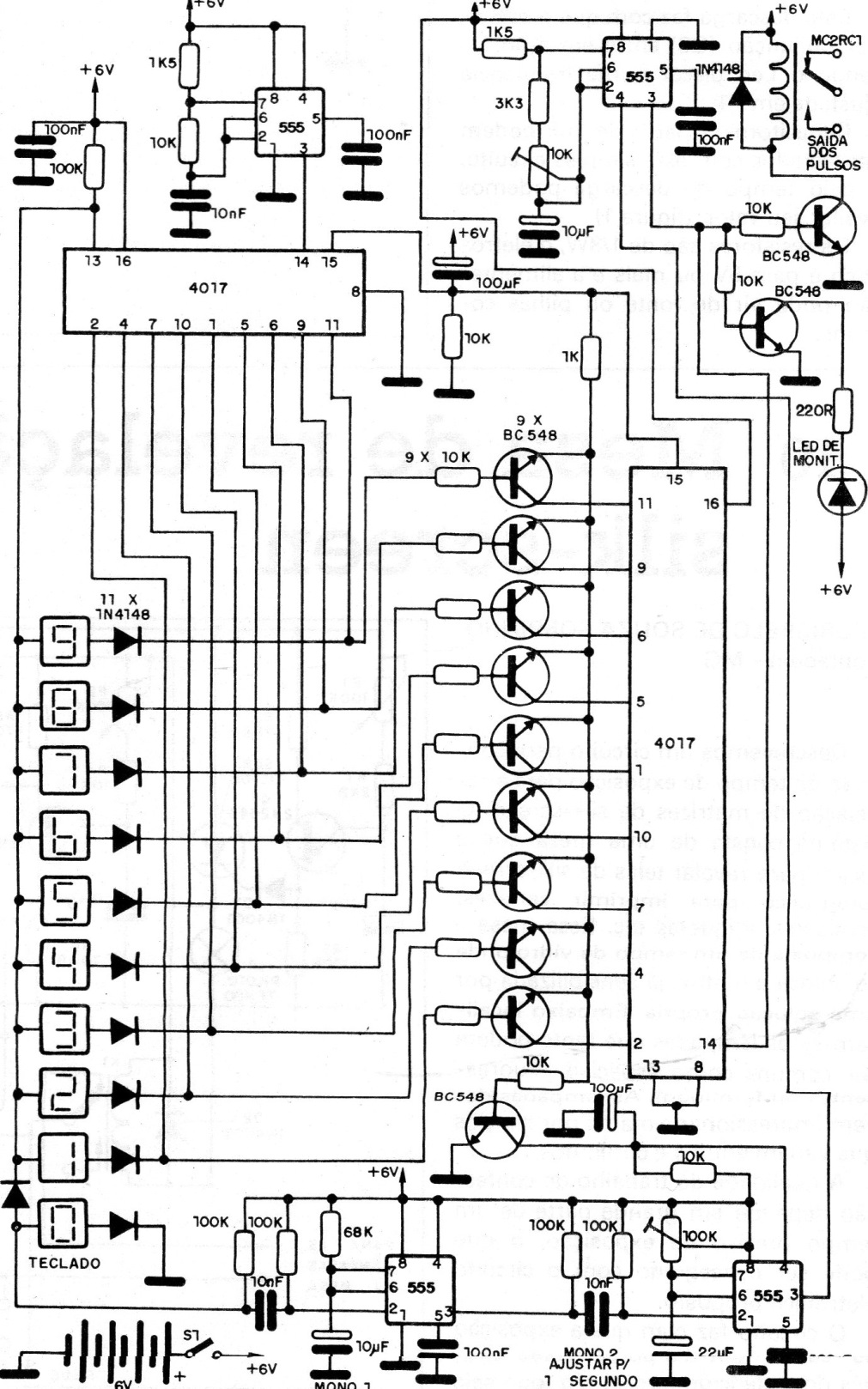

The number of pulses produced by this circuit depends on the switch pressed. The circuit is from 1988, but the components are current, which allows its assembly even today with ease. Power is by batteries or battery. The time of each pulse can be programmed by changing capacitors at 555.
