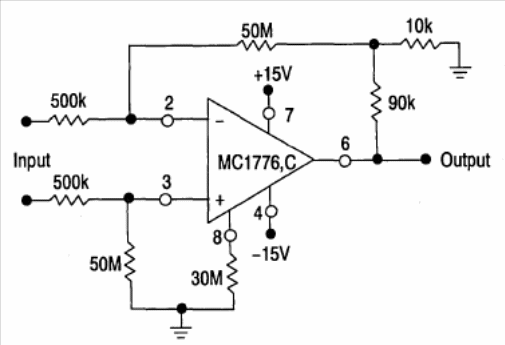

High Input Impedance Amplifier MC1776 (CB4501E)

Details: Written by: Newton C. Braga

We found this circuit in the 1993 Motorola Linear Interface ICs. The operational is unusual today, but the configuration can be made with equivalents.
