Dwell Meter (CB4961E)

Details
Written by: Newton C. Braga

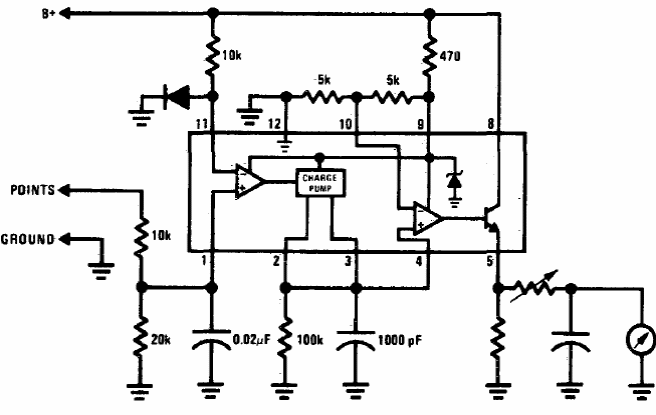

     This circuit is from the time when cars used contact breakers. This 80's version measures the dwell angle of the contact breaker for dwell adjustment using an era integrated circuit, the LM3917.
