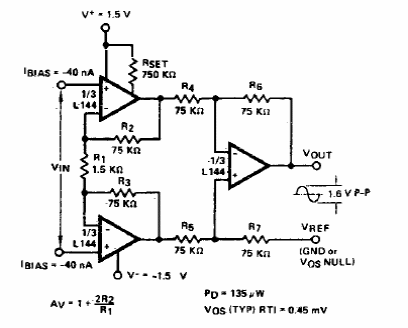

This 80's circuit uses an operational amplifier of the time. The circuit can be applied to modern low voltage operational amplifier. The power supply must be symmetrical. The voltage gain is 101 times with a 1.6 Vpp output signal.
