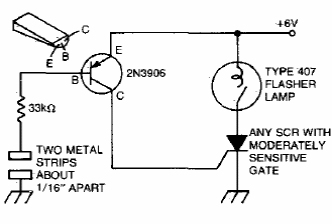

This circuit, which can also be used with flashing LEDs as long as they have in parallel a charge that keeps the SCR on, was found in a 1980s documentation. The sensor is made up of two metal plates that must be touched simultaneously.
Touch Flasher (CB4996E)
- Details
- Written by: Newton C. Braga
