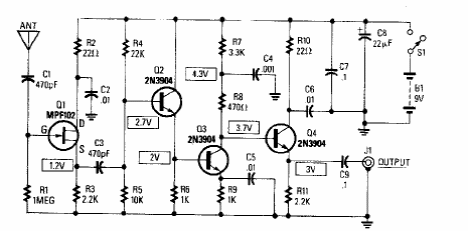

The operating range of this circuit is 10 kHz 30 MHz. Equivalent transistors can be used. The circuit is from a Poptronis. The antenna can be straight type 1.5 to 3 meters long. The power can be done by battery, given the low consumption.
4 Transistor Active Antenna (CB4752E)
