Current Sensor Shield (CB5231E)

Details: Written by: Newton C. Braga

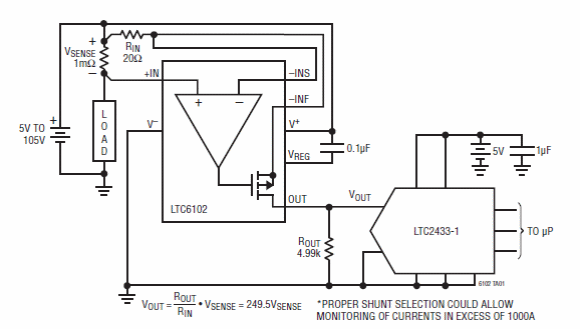

This circuit includes an AD converter for interfacing with a microprocessor and can be used as a shield. The circuit is from a 2005 Linear Technology manual based on the LTC6102.
