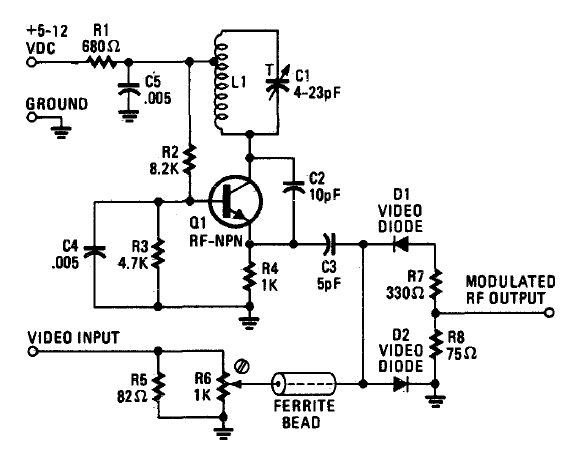

This circuit for analogue TV was found in an American 1980s documentation. The transistor can be any RF NPN like the BF494 and L1 details are not given. This coil determines with C1 the frequency of the generated signal.
