Battery Status Indicator (CB6062E)

Details
Written by: Newton C. Braga

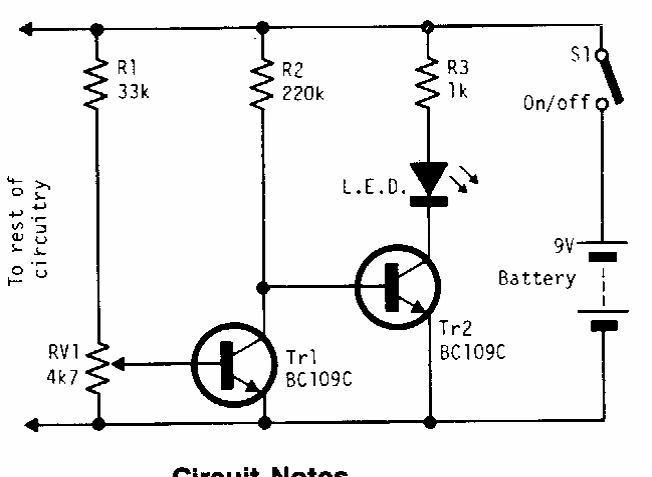

      This low power circuit was obtained from an American 80's documentation. The circuit indicates the voltage of a battery being trimmed by the trigger point. The transistors can be the BC549.
