High Side Current Sensor LTC6800 (CB5221E)

Details: Written by: Newton C. Braga

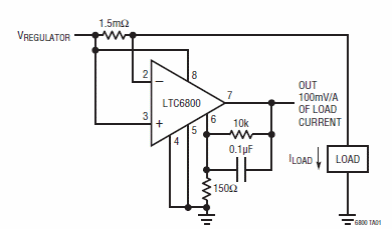

We found this circuit in a 2005 Linear Technology manual. The resistor is calculated for the current indicated in the diagram, but may change depending on the application.
