Z80 Clock (CB6094E)

Details
Written by: Newton C. Braga

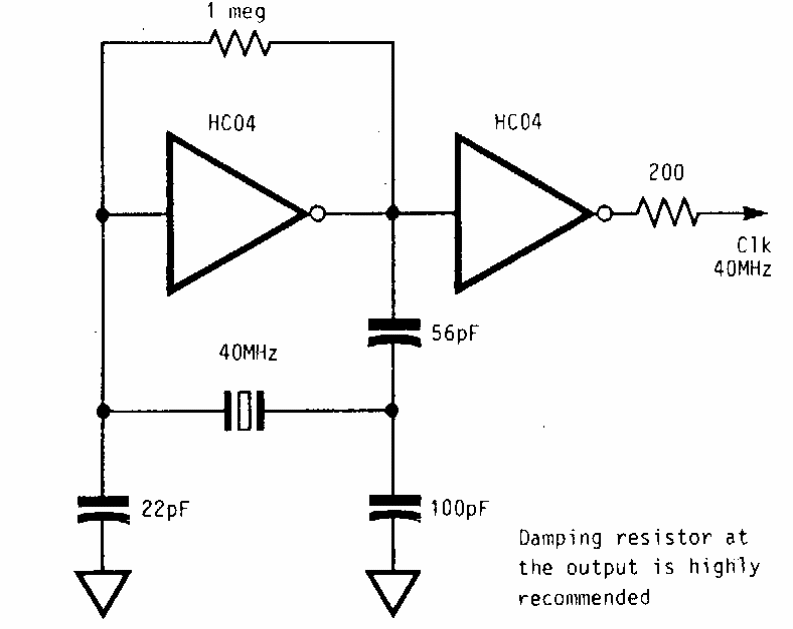

    Found in an ancient American documentation, this circuit can generate signals up to 40 MHz for a Z80, microcontroller widely used at the time. The circuit must be powered with 5 V and also serves as a shield.
