Audio Operated Relay (CB5985E)

Details
Written by: Newton C. Braga

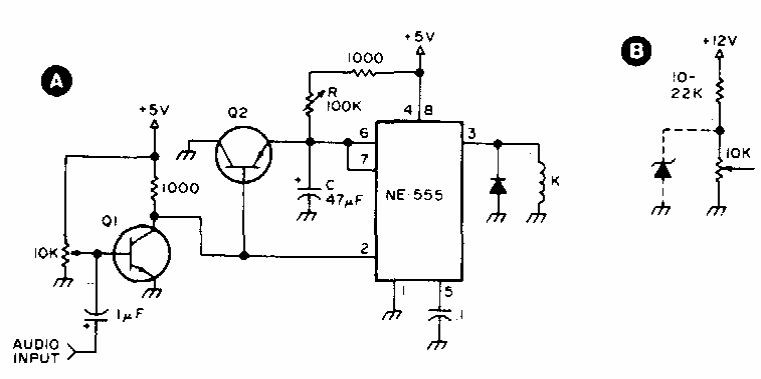

     This circuit is from the 80's but uses common components today. The relay is voltage sensitive according to the power supply used. Transistors may be general purpose types.
